Name: Metal Shutter Door Slat Roll Forming Machine
Brand: Sussman Machinery
Price: 1 USD

Brand Name : Sussman Machinery

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material : Galvanized steel ,thickness 0.7-1.2mm

Control system : PLC Panasonic

Roller material : GCr15

Roller Diameter : 120mm

Forming speed : 10m/min

Cutting method : Hydraulic cutting

Material of shaft : 45# steel

Contact Now

High Speed Fully Automatic Hydraulic Cutting Metal Shutter Door Slat Roll Forming Machine

1. Technical Parameter

Material to form shutter door	0.7-1.2mm, galvanized steel
Forming stations	about 13 stations
Roller material	GCr15, HRC58-62
Shaft material	45# steel, diameter: 50mm
Chain material	45# steel
Cutting method	Hydraulic cutting
Control system	PLC Panasonic
Machine size	4500mmx500mmx800mm
forming speed	12-15m/min
Drive system	Chain drive, 3Kw Main motor power

2. Working Process

Decoiling—→leveling —→main roll forming —→hydraulic cutting—→ run out table

Metal Shutter Door Slat Roll Forming Machine

3. Machine Components

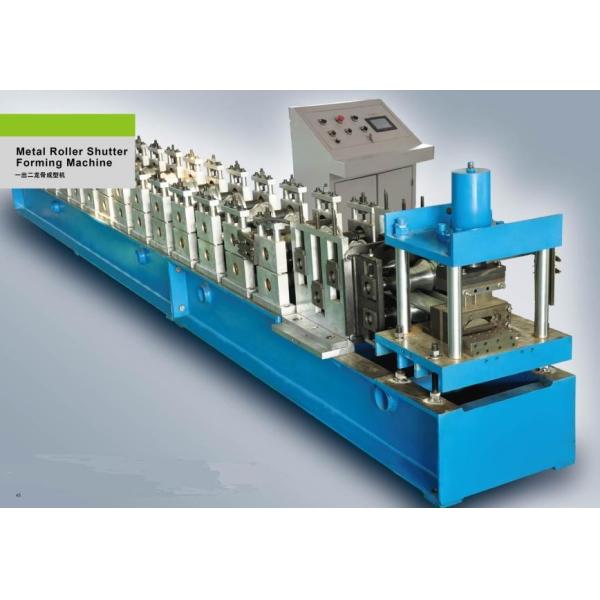

4. Machine Photo

Metal Shutter Door Slat Roll Forming Machine
